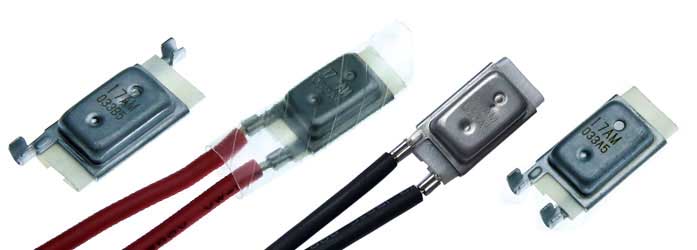

17AM temperature cutoff switch 20 amps
- PRODUCT DETAIL
17am temperature switch features: Small size design; one kind of trip temperature are strictly calibrated and checked; bimetal fast escape with a 100% (SANP ACTION);
17am temperature switch Model: 17A
17am thermostat switch temperature: 50 ℃ -180 ℃
Thermal protection 17AM Series
17AM protection is a series of over-temperature, over-current protection device of its small size, contact capacity, escape moves fast, mainly used in motors, lamps and small appliances overtemperature overcurrent protection.
17am temperature switch features:
Small size design;
Each trip temperature are strictly calibrated and checked; bimetal fast escape with a 100% (SANP ACTION);
An induction current and temperature sensing operation of the dual performance;
To follow a variety of riveting wire length with customer demand;
Switch housing is over-current can be welded directly to the electrical lead or nickel sheet use; can also be applied using an insulating sleeve;
Each parts are strict implementation of the European ROHS environmental standards.
17am thermostat switch Electrical Specifications:
20 amps/16 volts DC
10 amps/250 volts DC
20 amps/125 volts DC
17am temperature switch technology parameters:
Operating temperature range: 50 ℃ -180 ℃, available upon request at any temperature within its range
Temperature tolerance: ± 3 ℃, ± 5 ℃, two kinds of tolerance for customer choice, typically ± 5 ℃
17am temperature control switch Applications:
Various types of motors, motor
Pumps, air compressors, washing machine
Electronic Ballast, HID ballasts, lighting fixtures
Heating pad, car blanket, heating pad Medical
Power tools, chargers, transformers
Household appliances, heating appliances

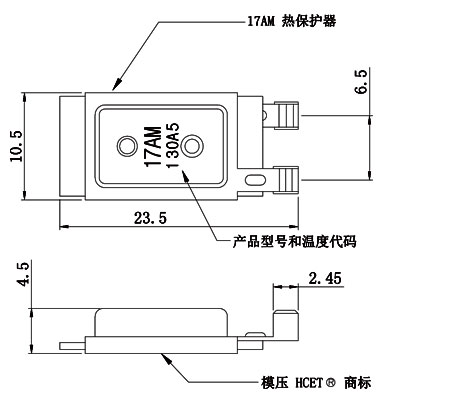

17am temperature switch Dimensions:
17am temperature switch Model: 17A
17am thermostat switch temperature: 50 ℃ -180 ℃
Thermal protection 17AM Series
17AM protection is a series of over-temperature, over-current protection device of its small size, contact capacity, escape moves fast, mainly used in motors, lamps and small appliances overtemperature overcurrent protection.
17am temperature switch features:
Small size design;
Each trip temperature are strictly calibrated and checked; bimetal fast escape with a 100% (SANP ACTION);
An induction current and temperature sensing operation of the dual performance;
To follow a variety of riveting wire length with customer demand;
Switch housing is over-current can be welded directly to the electrical lead or nickel sheet use; can also be applied using an insulating sleeve;
Each parts are strict implementation of the European ROHS environmental standards.
17am thermostat switch Electrical Specifications:
20 amps/16 volts DC
10 amps/250 volts DC
20 amps/125 volts DC
17am temperature switch technology parameters:
Operating temperature range: 50 ℃ -180 ℃, available upon request at any temperature within its range
Temperature tolerance: ± 3 ℃, ± 5 ℃, two kinds of tolerance for customer choice, typically ± 5 ℃
17am temperature control switch Applications:
Various types of motors, motor
Pumps, air compressors, washing machine
Electronic Ballast, HID ballasts, lighting fixtures
Heating pad, car blanket, heating pad Medical
Power tools, chargers, transformers
Household appliances, heating appliances
17am temperature switch Dimensions:
