thermik s01 cut off switch
- PRODUCT DETAIL

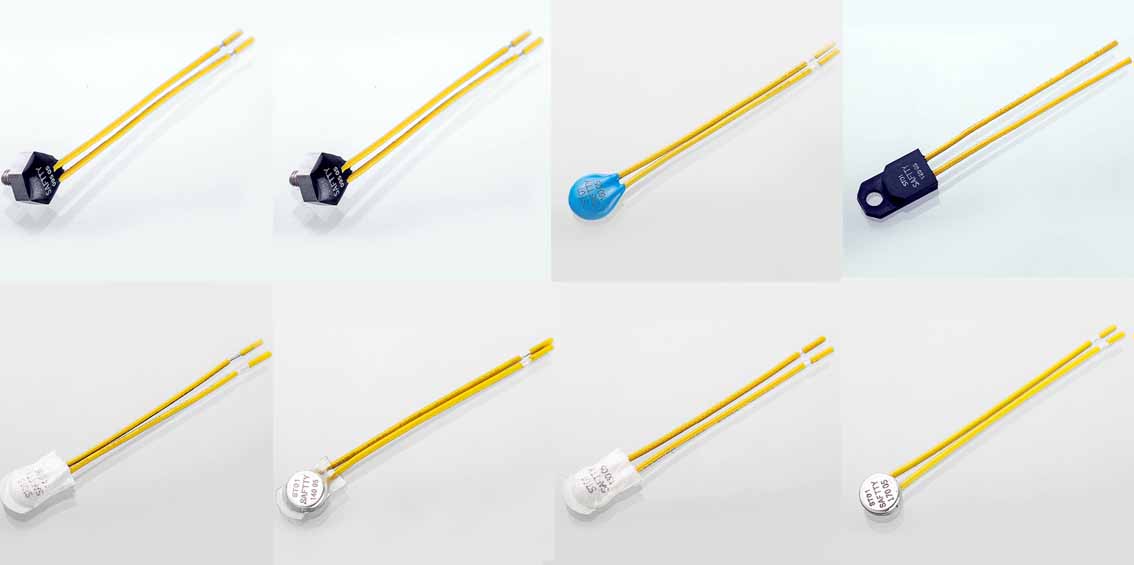

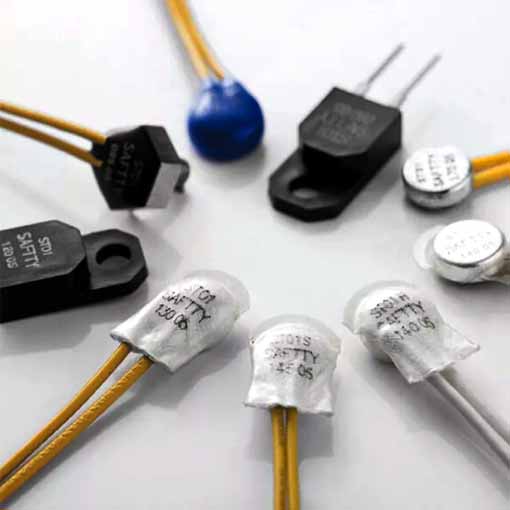

Competitive Advantage :
ST01-U4 ultra-temperature protection thermal protection epoxy encapsulation, more suitable for preventing vacuum impregnation areas. Small size, easy installation. Sensitive, reliable performance, the indicators reached the international advanced level.
ST01 Performance parameters:
Rated operating temperature, 5 degrees to each series (Tk): 60-180 ℃
Standard tolerance: ± 5K
Reset temperature range: two-thirds of operating temperature ± 15K
Maximum operating voltage: 500VAC 60VDC
Current Rating: 250VAC / 5A
Switching frequency at rated current: 5A / 10000
Seismic capacity 10-60HZ: 100m / s2
Pressure stability of housing: 450N (45kg)
Insulation voltage: 2.5KV
Insulating sleeve length a:> 16mm
Diameter d: <9.2mm
Height h: <5mm
Wire cross-sectional area: 0.3mm2 AWG22
Conductor standard length: L1 = L4 = 520 ± 10mm L2 = L3 = 200 ± 5mm L5 = L6 = 55 ± 5mm
Technical Parameters
AGENCY FILE NUMBER STANDARD NUMBER APPLICATION
UL E305764 873 Motor protection
VDE 40016121 EN60730-2-2 Motor protection
TUV R50109800 EN60730-2-3 Lighting Protection
TUV R50110965 EN60730-2-9 Thermal cut-out
CB CN5785 IEN60730-2-2 Motor protection
CQC CQC05002013372 GB14536.1 GB14536.3 Motor protection Limit and regulating controls
ST01-U4 ultra-temperature protection thermal protection epoxy encapsulation, more suitable for preventing vacuum impregnation areas. Small size, easy installation. Sensitive, reliable performance, the indicators reached the international advanced level.
ST01 Performance parameters:
Rated operating temperature, 5 degrees to each series (Tk): 60-180 ℃
Standard tolerance: ± 5K
Reset temperature range: two-thirds of operating temperature ± 15K
Maximum operating voltage: 500VAC 60VDC
Current Rating: 250VAC / 5A
Switching frequency at rated current: 5A / 10000
Seismic capacity 10-60HZ: 100m / s2
Pressure stability of housing: 450N (45kg)
Insulation voltage: 2.5KV
Insulating sleeve length a:> 16mm
Diameter d: <9.2mm
Height h: <5mm
Wire cross-sectional area: 0.3mm2 AWG22
Conductor standard length: L1 = L4 = 520 ± 10mm L2 = L3 = 200 ± 5mm L5 = L6 = 55 ± 5mm
Technical Parameters
| With insulation sleeve | S01 | |
| 1 | Contact type | Usually closed |
| 2 | Rated switching temperature (NST) every 5 ℃ | 60-200℃ |
| 3 | Standard tolerance | ±5K |
| 4 | Reset temperature range according to UL / CSA at rated switching temperature | 30K±15K |
| 5 | Applied voltage ... AC ... / DC | ...500V ~/...100V= |
| 6 | Rated voltage, AC | 250V|500V |
| 7 | Rated current, alternating current cosφ = 1.0 | 2.5A|0.75A |
| 8 | Rated current, alternating current cosφ = 0.6 | 1.6A|0.50A |
| 9 | Number of switches in In and Un conditions | 10.000 |
| 10 | Current sensitivity in In | No |
| 11 | Maximum switching current at 250V ~ / number of switching | 5.0A/2000 |
| 12 | Contact bounce time | < 1ms |
| 13 | Contact resistance (refer to MIL-Stand, R5757) | < 50mΩ |
| 14 | Impregnation resistance (according to Thermik test) | Fit |
| 15 | Vibration resistance at 10-60Hz | 100m/s2 |
| 16 | Casing pressure stability (special test to maximum) | 450N(45kg) |
| 17 | High voltage insulation (no C type) | 2 kV |
| 18 | Protection level | I |
| 19 | Standard connection | lead 0.25mm2 |
| 20 | Diameter d (with / without insulation sleeve) | 9.4/9.0mm |
| 21 | Height h (with / without insulation sleeve) | 4.8/4.3mm |
| 22 | Insulation sleeve length | 16mm |
| 23 | Screw / -length | - |
| 24 | Wrench size / maximum torque | - |
| 25 | Approved according to safety design | VDE.UL.BEAB.CSA.SEMKO |
AGENCY FILE NUMBER STANDARD NUMBER APPLICATION
UL E305764 873 Motor protection
VDE 40016121 EN60730-2-2 Motor protection
TUV R50109800 EN60730-2-3 Lighting Protection
TUV R50110965 EN60730-2-9 Thermal cut-out
CB CN5785 IEN60730-2-2 Motor protection
CQC CQC05002013372 GB14536.1 GB14536.3 Motor protection Limit and regulating controls
