17 AM-P series power reset thermal protection

 17 AM-P Model: 17 AM-P

 17 AM-P temperature: 50 ℃ -180 ℃

 17 AM-P characteristics: with power protection (manual reset) function; more reliable safety performance; according to customer requirements with a variety of riveting wire length;


17 AM-P thermal protection is provided in the heating element 17AM thermal protection on the basis that it has a power protection, the protection function is more reliable and secure. Mainly used in the field of electrical vacuum cleaners, lawn mowers, power tools and so on.

 17 AM-P features:

    ● With power protection (manual reset) function;

    ● more reliable safety performance;

    ● according to customer requirements for a variety of riveting wire length;

    ● according to customer requirements, the overload tripping current values ​​up to 45A;

    ● very accurate trip time (4S-10S), to prevent the motor temperature is too high;

 17 AM-P Electrical Specifications:

    ● 20amps / 16 volts DC

    ● 15amps / 250 volts DC

    ● 20amps / 125 volts DC

 17 AM-P technical parameters:

    ● Operating temperature range: 50 ℃ -180 ℃, available upon request at any temperature within its range

    ● Temperature Tolerance: ± 3 ℃, ± 5 ℃, two kinds of tolerance for customer choice, typically ± 5 ℃

 17 AM-P Applications:

    ● vacuum cleaner, grinder, mixer, mower

    ● power tools, snowplow

    ● household appliances, heating appliances

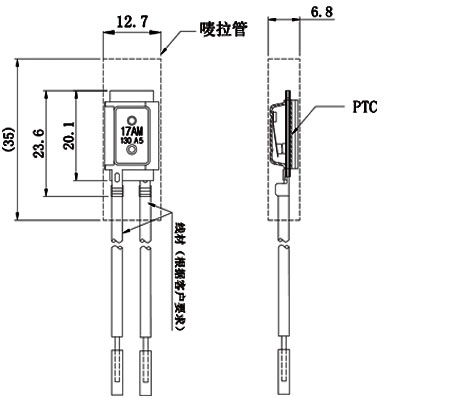

  17 AM-P Dimensions:
