Thermal Protector for Water Pump/Motor

Thermal protection is a device installed inside a motor or electric compressor to prevent overheating that could lead to serious failure. Thermal protectors are widely used in water pumps because water pumps are classified as high-power machinery. Simply put, the most effective way to avoid water pump overheating problems is to install a thermal protector. This is a one-time investment that may save you unnecessary repair costs.

How thermal protectors help improve water pump performance
Because water pumps are high-power machines, their motors can easily overheat, causing them to run out of steam. Problems such as mechanical failure, unbalanced windings and overloading will eventually damage the pump.

A thermal protector may be all the solution you need. Here's how these devices can help you:

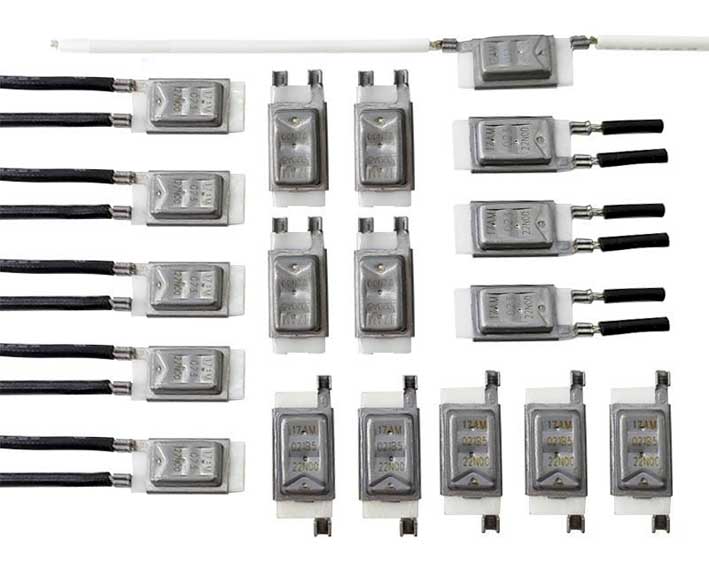

Thermal Protector for Water Pump/Motor
     Avoids the problem of dry burning and extends the service life of the water pump
     For a water pump to work efficiently, especially in boreholes, there must be sufficient volume of pumped water. When the required water pressure is met, the pump's motor is cooled. However, the water level sometimes drops, causing the pump to start sucking air. This is called dry burning, and it can damage the pump or cause it to break completely. One of the main symptoms of a dry burn is overheating. This will also significantly shorten the life of the water pump. Thermal protectors feature one or several thermal sensor elements connected to the motor. It turns off the motor when heating starts, saving your pipes. This is a great way to keep your pipes safe.

     Save time and maintenance costs
     A thermal overload protected water pump will last much longer than a water pump without a thermal protector. We all know how difficult and expensive it is to replace a water pump. This is not only inconvenient, but also costly. A high-quality thermal protector like the ST07 can help you avoid all of these problems. It controls temperature level damage by shutting down the motor. This is a system that runs automatically without any issues.

     How the water pump thermal protector works
     The working principle of a thermal protector is quite simple. Let's take the ST07 as an example. The device uses copper-nickel alloy bimetal as the core material. It applies basic high school physics in its operations. As long as the temperature is below the operating limit, the bimetallic disc remains intact and the circuit is complete. But if the temperature reaches the maximum operating temperature, it will bend and deform, cutting off the circuit. This prevents the motor from overheating. When the temperature drops to optimal, the bimetal automatically resets and reconnects the circuit. In this way, the pump can maintain efficient and safe operation.

Why Choose ST07 Thermal Protector for Installation in Water Pumps
Choosing a high-quality, durable thermal unit is crucial. The star-studded ST07 from Saftty is all that and more. This is a brand known for providing incredible water pump protection solutions. It promises the following benefits:

ST07 thermal protector
     Individual temperature checks
     The effectiveness of a water pump thermal protector depends on how it works. In this case, the ST07 outperforms other brands because it detects a single temperature. This means it can detect problems faster before they become a big problem. They are extremely sensitive to temperature and react extremely accurately to temperature changes.

     Top quality ingredients
     When the temperature changes too frequently, inferior thermal protectors can easily break. The ST07 is designed with high-quality materials to ensure durability and longevity. This gadget lasts so long that you can forget about repairs and maintenance.

     Recoverable temperature performance
     Thermal protectors provide long cycle repeatable temperature performance. This means you can use it multiple times to adjust for temperature issues and it will still perform effectively. Some thermal protectors have only one use, and that will mark their end.

     Sealing steel condition
     The gasketed steel housing on this device makes it more suitable for the dipping process. What you are looking at is the highest performing thermal protector on the market.

     Various leads and bushing options
     The ST07 is the most durable thermal case on the market, and that’s no accident. The different sections of leads and insulating sleeves give it a long service life and ensure top-notch protection for your water pump.

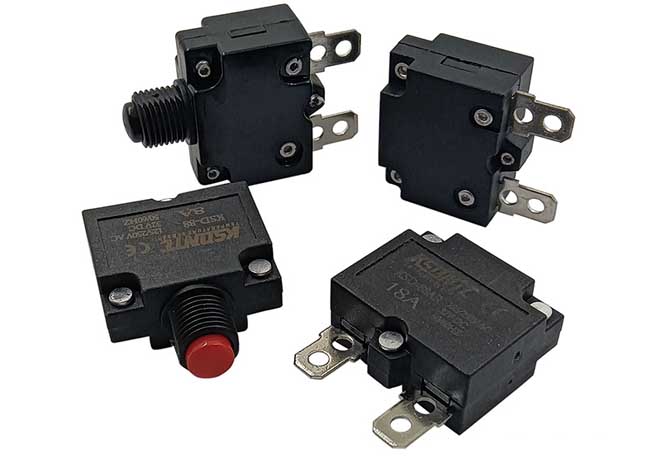

Motor, water pump thermal cut-off switch
