KSD9700 series miniature temperature control switch, the main feature is a square shell with lead, Small size convenient installation,
Micro temperature switch according to the material can be divided into: metal shell and plastic shell
Common square shell temperature control switch size list:

Product model	L	W	thick
20-metal shell	20	8.5	7.6
20-plastic shell	20	7.9	4.1
17-plastic shell	17	7.9	4.1
15.5-plastic shell	15.5	7.2	3.8

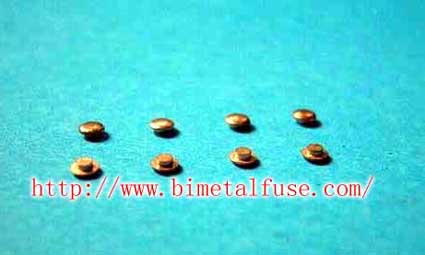

1、Miniature temperature control switch, thermostat contact diagram:

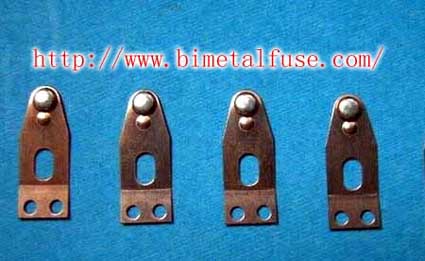

2、Miniature temperature control switch moving contact riveting map

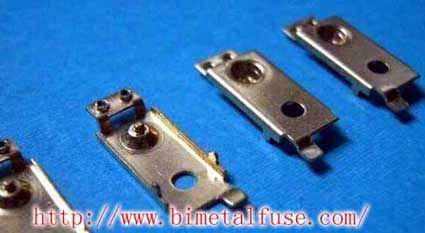

3、Micro Thermostat fixing bottom plate

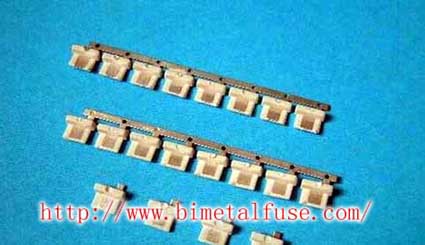

4、Miniature Thermostat static sealing terminal

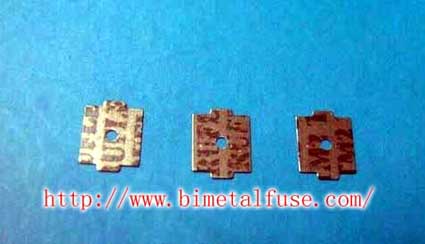

5：Micro Thermostat Bimetal Structure diagram

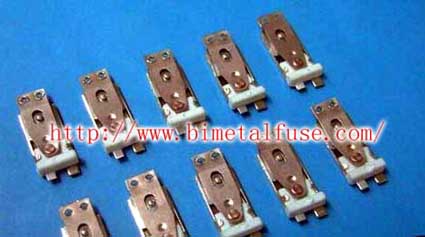

6、Miniature temperature control switch Internal assembly structure

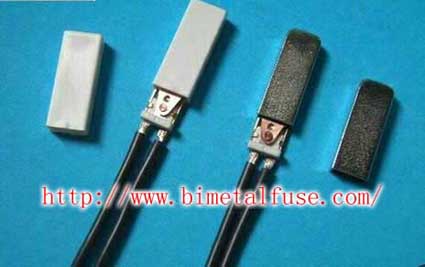

7：Micro temperature control switch shell assembly diagram

Technical guidance:<temperature switch testing rules>
