Water dispenser is commonly used in household appliances, temperature control switch is a drinking fountains security protection of the main protection components,
Drinking fountains in the daily life of the accident is relatively small, So few people pay attention to the safety of drinking fountains, But I do not know,  there is a security risk of Water dispenser , like a bomb from time to time. Therefore, the temperature switch is installed as a protective element in the dispenser, The quality of the temperature switch product is so important, So how to protect the temperature switch water dispenser?

Water dispensers are generally installed two temperature control switch:
1> 86 ℃ automatically reset the temperature control switch, Its role is to ensure a constant water temperature of the dispenser
2> 97 °C Anti dry burning, Manually reset the temperature control switch, Its role is to prevent the heating tube overheating protection, power failure function.
　 Drinking fountains are warm, hot ice, ice warm three types, From the construction of drinking fountains up to understand, General construction of drinking fountains are more simple and clear, Its hot water is through the hot water bucket and the heating equipment supply, Press the heating switch, Heating indicator light, Electric heating tube, The water in the hot pot warms. When the water temperature to the set temperature, Thermostat contacts open, Automatically cut off the heating power, Heating indicator light goes out, Heating tube to stop heating. When the water temperature drops to the set temperature, Thermostat contact closure, Automatically connected to the heating power, Heating indicator light, electric heating tube. Repeat the above process, So that the water temperature between 85-95℃ to maintain constant temperature.
　　The entire temperature control process described above, Temperature control switch is the key factor. Whether heating, Or constant temperature, Are set by the temperature control switch, Which play a role in protecting the drinking fountains electric heating pipe work process.
(The figure is the location of the dispenser thermostat installation)

If the water dispenser installed a relatively poor quality of the temperature control switch, Will appear what kind of situation, If the water temperature does not reach the boiling state, Temperature control switch automatically disconnect the power, Then we drink the water will be warm water, Semi-warm water will affect the health, Is likely to lead to diarrhea;
If the thermostat has been out of the state, Electric heating tube will not heat, Then the water dispenser will never appear hot water, Only replace the water dispenser temperature control switch to work, If you do not understand the working principle of the people, That the fountain is useless. The more serious problem is that, Assuming the poor quality of the temperature control switch has not been disconnected from the power supply, Then the heating tube will continue to heat, He will burn the parts of the water dispenser, General are plastic water dispenser shell, If the housing is burned, It will lead to disaster.

Therefore, the temperature above the water dispenser switch to choose a good quality products, If there is a bad phenomenon, It is necessary to replace the temperature control switch, So as to ensure the normal use of drinking fountains.

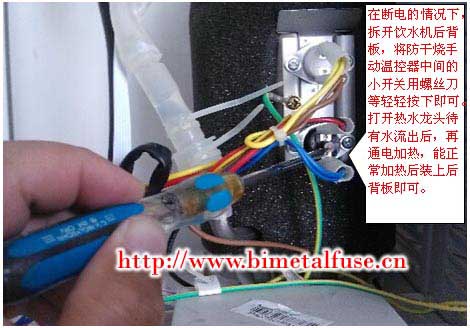

(The figure is to replace the temperature control switch diagram)
