rf 250v 10a, 250v / 20A 216 Celsius Circuit Cut-off Temperature Thermal Fuse Ceramics  AUPO, RY, RH, DYE, SEFUSE, SET, Emerson, NEC

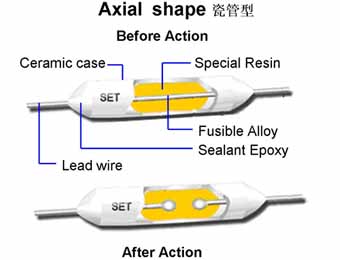

A Ceramics  thermal cutoff is an electrical safety device parts (either a thermal fuse or thermal Cutoff) that interrupts electric current when heated to a specific temperature. These devices may be for one-time use (Ceramics thermal fuse).

Rated Voltage: 250V;
Rated Current: 1A, 2A, 3A, 5A, 10A, 15A,20A.
Cutoff Temperature: Custom
This is a single-use device that cannot be reset and must be replaced when it fails or is triggered.
Function is to cut off the circuit of appliances when temperature exceed specified TF value because of unexpected fault.
Widely used in home appliance such as rice cooker, pressure cooker, hair straightener, heater, rice cooker，etc. as thermal overload protection. You can freely use the matching furniture and wire harness processing.

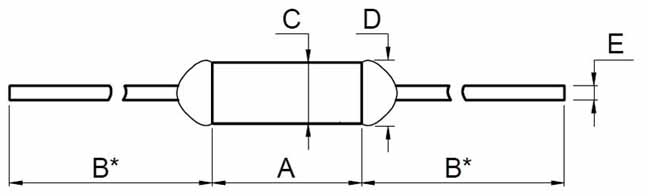

Dimensions(mm) A B C D E 6.5±0.5 37±5 2.1±0.5 ≤2.6 0.5±0.05



Model

Tf (℃)

Fuse-Temp (℃)

Th(℃)

Tm(℃)

Ir(A)

Ur(V)

UL

CUL

TUV

PSE

CCC

KTL

RoHS

V0

76

73±2

53

200

1

250AC

●

●

●

●

▲

125AC

●

●

▲

50DC

●

●

▲

V18

86

81±2

61

200

1

250AC

●

●

●

●

▲

125AC

●

●

▲

50DC

●

●

▲

V21

97

93±2

70

200

1

125AC

●

●

▲

50DC

●

●

▲

V1

102

98±2

79

200

1

250AC

●

●

●

●

▲

125AC

●

●

▲

50DC

●

●

▲

V2

115

111±2

91

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V3

125

121±2

100

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V4

130

125±2

106

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V8

133

130±2

111

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V5

135

130±2

111

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V9

136

131±2

112

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V13

139

135±2

115

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V6

145

140±2

121

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

V7

150

145±2

126

200

1

250AC

●

●

●

●

●

●

▲

50DC

●

●

▲

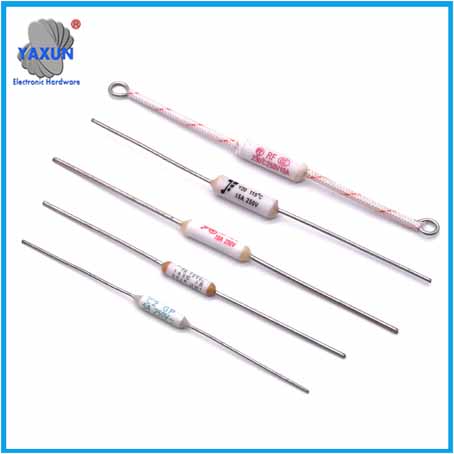

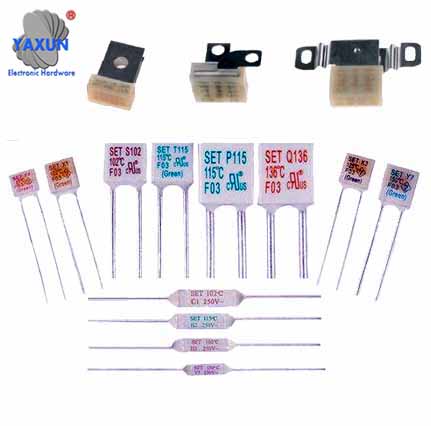

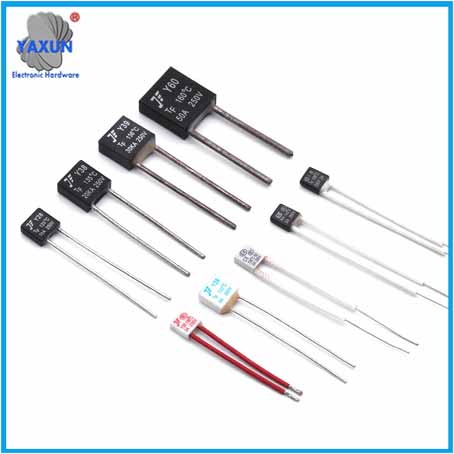

Ceramic thermal fuse	AUPO thermal fuse	Axial thermal fuse
