KSD301(5A, 10A,16A 125v / 250v) series product is a kind of temperature control switch that uses bimetal as the temperature sensing component. When the electrical appliance is working normally, the bimetal is in a free state, and the contact is in a closed/disconnected current state. When the temperature reaches the operating temperature, the bimetallic strip is heated to generate internal stress and act quickly, opening/closing the contacts, cutting/connecting the circuit, and thus plays a role in temperature control. When the appliance cools to the reset temperature, the contact opens/closes automatically, and the normal working current state is restored.

widely used in: Water dispenser, water heater, sandwich toaster, dishwasher, dryer, disinfection cabinet, microwave oven, electric coffee maker, electric cooker, refrigerator, air conditioner, glue machine, office equipment, car seat heater and other electric appliances.

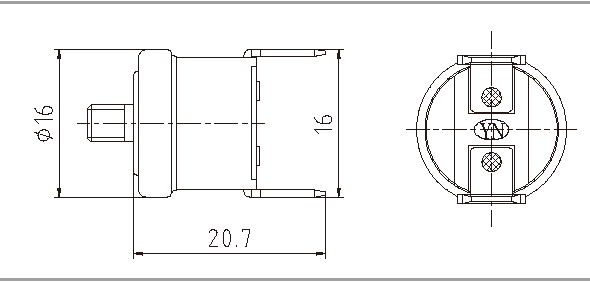

Technical Parameters
1. Electrical parameters: 1) CQC, VDE, UL, CUL, 125V/ AC250V 50~60Hz 5A / 10A / 15A /40A / 50A/ 60A (resistive load)
2) UL AC 125V 50Hz 15A (resistive load)
2. Operating temperature range: 0~240°C (optional), temperature accuracy: ±2 ±3 ±5 ±10°C
3. Temperature difference between reset and action: 8~100℃ (optional)
4. Wiring mode: plug terminal 250# (flexible 0~90° optional); plug terminal 187# (flexible 0~90° optional, thickness 0.5, 0.8mm optional)
5. Service life: ≥ 100000 times
6. Electric strength: AC 50Hz 1800V lasts 1min, no flicker, no breakdown
7. Contact resistance: ≤50mΩ
8. Insulation resistance: ≥100MΩ
9. Contact form: normally closed type: the temperature rises, the contact is disconnected; the temperature drops, the contact is connected.
Normally open type: when the temperature rises, the contact is connected; when the temperature falls, the contact is disconnected.
10. Shell protection grade: IP00
11. Grounding method: Connect the grounded metal parts of the device through the metal shell of the thermostat.
12. Installation method: It can be reinforced directly with a screw nut.
13. Temperature working range: -25℃∽+240℃ / +1℃∽2℃

Comparison table of the range of cut-off and cut-on current at rated temperature

specification	Operating temperature range	Recovery temperature range
30℃	30±5.0℃	20±5.0℃
35℃	35±5.0℃	23±5.0℃
40℃	40±5.0℃	25±5.0℃
45℃	45±5.0℃	30±5.0℃
50℃	50±5.0℃	35±5.0℃
55℃	55±5.0℃	38±5.0℃
60℃	60±5.0℃	40±5.0℃
65℃	65±5.0℃	45±5.0℃
70℃	70±5.0℃	45±5.0℃
75℃	75±5.0℃	50±5.0℃
80℃	80±5.0℃	55±5.0℃
85℃	85±5.0℃	55±5.0℃
90℃	90±5.0℃	60±5.0℃
95℃	95±5.0℃	65±5.0℃
100℃	100±5.0℃	65±5.0℃
105℃	105±5.0℃	70±8.0℃
110℃	110±5.0℃	75±8.0℃
115℃	115±5.0℃	75±8.0℃
120℃	120±5.0℃	80±8.0℃
125℃	125±5.0℃	85±8.0℃
130℃	130±5.0℃	85±8.0℃
135℃	135±5.0℃	90±8.0℃
140℃	140±5.0℃	95±8.0℃
145℃	145±5.0℃	95±8.0℃
150℃	150±5.0℃	100±8.0℃
155℃	155±5.0℃	100±8.0℃
160℃	160±5.0℃	105±8.0℃
165℃	165±5.0℃	105±8.0℃
170℃	170±5.0℃	110±8.0℃
175℃	175±5.0℃	115±8.0℃
180℃	180±5.0℃	120±8.0℃
