Temperature control switch electrical parameters are the reference indicators of customer selection. There are several different temperature control switch products, such as: (button type, wire series square.).

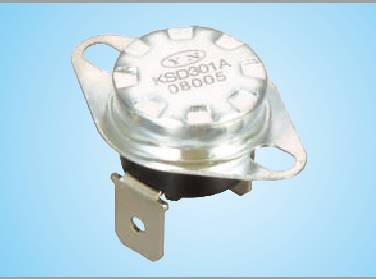

1, button-type KSD301 series of electrical parameters are many: AC250V 50 ~ 60Hz 5A / 10A / 16A (resistive load)


2, button type KSD302 high power type: AC125V AC250V 50 ~ 60Hz 20A / 25A / 30A / 40A / 50A / 60 (resistive load),Customers according to their electrical electrical parameters to selection.

Lead wire Series Square, Each company product model call is not the same. More products on the market are: (KSD9700, BW9700, KW9700, 17AM, TB, etc. series), But the electrical parameters are basically the same:

3, the current market the smallest TB02 temperature control switch electrical parameters: ● 2A / 250V AC ● 5A / 120V AC ● 10A / 12V AC ● 5A / 24V AC

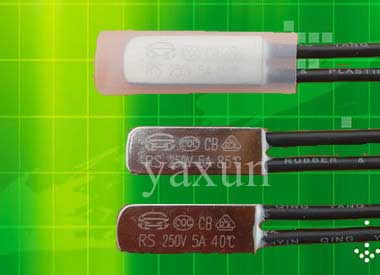

4, the current market, the most common wire series box-type temperature control switch KSD9700 electrical parameters: ● 12A / 12VDC ● 10A / 24VDC ● 8A / 120VAC 5A / 250VAC

5, Lead wire series Square large current temperature control switch:

●25A/250V AC, ● 30A/24V AC,
● 50A/250V AC, ● 60A/24V AC,

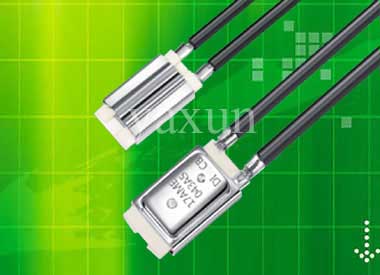

6, Lead wire series box 17AM temperature control switch: ●22A / 115VDC ,
●9A / 250VAC

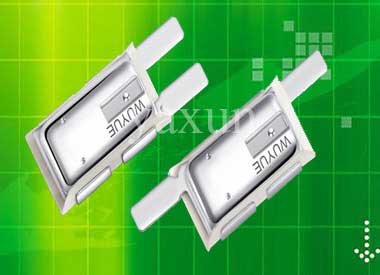

7, Lead wire series box-type 5AP, 6AP, 3mp Series:
● 30amps / 15 volts DC,
● 15amps / 30 volts DC,
● 28amps / 250 volts DC,
● 18amps / 125 volts DC,
