The car is now the fastest growing means of transport, For the automotive temperature control switch is more and more diversified applications, Yaxun electronic production of automotive temperature control switch, Now I analyze a variety of automotive temperature control switch classification.

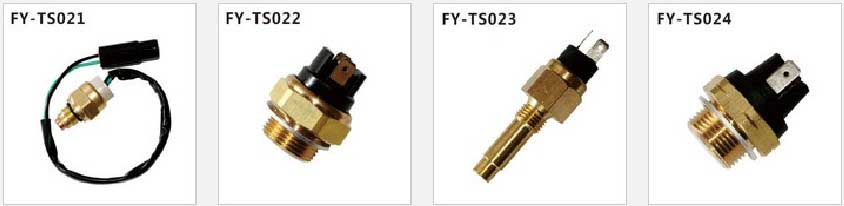

1, the car water tank temperature control switch \ thermostat:
  Automotive temperature control switch using foreign high-quality disc-shaped bimetal for temperature sensing element, The car water tank temperature control switch installed in the car water tank temperature sensitive parts, Real-time security protection for automotive engine temperature monitoring.
 Automotive water tank thermostat \ Thermostat requirements waterproof requirements are very strict. The general use of copper processing copper probe, The use of copper probe thread fixed in the car water tank temperature sensitive parts, Dynamic collection of water tank water temperature changes, Through the induction of the water tank temperature, Disconnected \ connected to the circuit work. With the work of the car engine cooling fan, When the temperature exceeds the set car engine protection temperature, Temperature control switch connected to start the cooling fan,  ooling water inside the tank. When the temperature of the water tank drops to the normal operating temperature, Off current to stop the fan operation, Automotive water tank thermostat is an important component of the safety protection of automobile engine.

2, car wipers, car Windows, car Skylights, car Seat motor temperature control switch:
Car wipers, car windows, car skylights, car seats and other equipment will use the motor, In order to ensure the normal operation of the motor, Will install the temperature control switch to protect the motor, General protection:
1, room temperature locked rotor.
2, low temperature (-30 ℃) locked rotor.
3, high temperature ( 85 ℃) locked rotor.
4, the current overload protection.
5, the motor overheating protection.

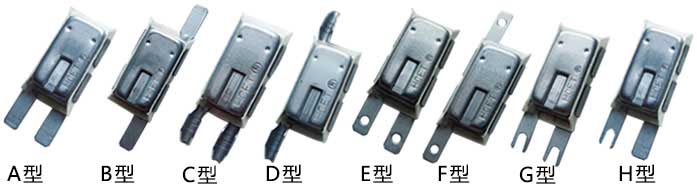

Car wipers, Car Windows, Car Skylights, Seat motor temperature control switch of the main features:
1, at the same time with over-current, Temperature protection of the dual protection elements, It can precisely control the motor stall or
2, excessive current on the motor damage.
3, the volume of small, Long life and reliability;
4, the use of good electrical properties of bimetal, To ensure that it can withstand the normal loop current requirements;
5, bimetallic and electric wire combination with a quick trip performance;
6, very accurate trip time, To prevent the motor temperature is too high;
7, select the control of overload current trip range: 1 ~ 25A
  8, the escape time: 4 ~ 10s
Commonly used car temperature control switch Model: 6AP,  3MP,  HC01, 5AP, 2MP
