Bimetallic strip Thermostat switch
A bimetallic sensor is a device that is composed of two metal sheets, each one made of a different material with different characteristics. These sheets monitor temperature changes and depending on the heat that passes through them they can contract or expand.
Development and application of several bimetal: KSD301, 17AM, TB02, Thermal overload circuit breaker, Contact bimetallic thermostat, model TFS35, klixon 6AP/ 8AM/2/3/4AM/3MP/TH10/9700/YS11/ YS10

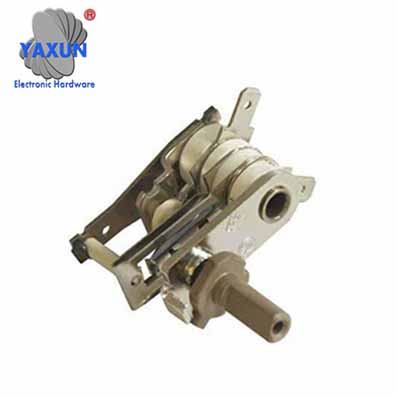

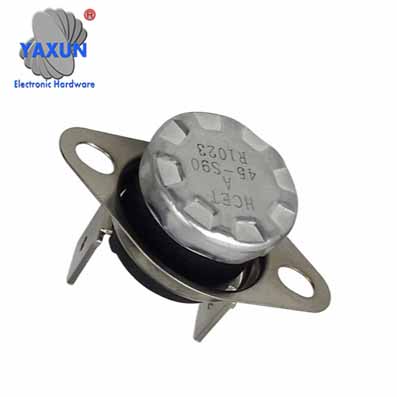

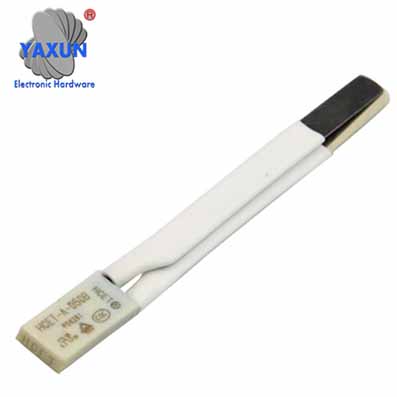

|Adjustable bimetal thermostat switch||KSD301 Bimetal Thermostat Switch||Bimetal thermostat switch|
Where are these sensors used?
These sensors can be used for temperature applications, for overcurrent protection or in some other more specific applications.
For temperature applications we can find two different ones as thermostats or as thermometers.
We can find two different types, those of fixed temperature and those of variable, these sensors are placed together with a heat source and are used to regulate the temperature in the selected degrees through a mechanism.
For example, for those with variable temperature we have a heating system and we select 22º, this device generates the necessary heat until reaching the selected limit and when it exceeds that limit the circuit is interrupted, once the temperature is below the level it returns to activate and so on to maintain the selected temperature.
The sheets are placed next to a mechanism that translates the curvature to a temperature scale in either degrees Celsius, Kelvin or Fahrenheit.

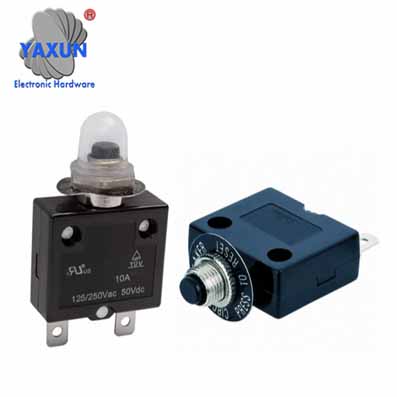

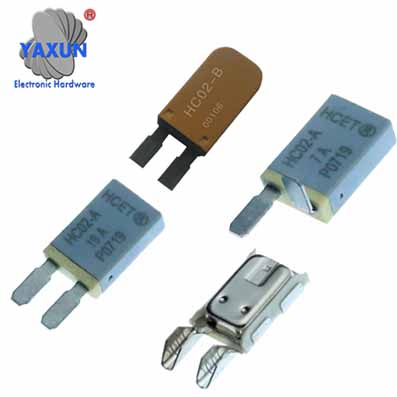

The bimetallic ones are used mainly to monitor the amount of electrical current that passes through a conductor, when it exceeds the nominal values it generates a heat source that makes the sheets react and they form a curvature that causes the circuit to be interrupted indicating that it exists an overcurrent at that point.
Previously, bimetallic ones were used in the flashing lights of cars, although these have already been replaced by electronic components.
