All Trade Direct Mixed Assorted Amp Standard Blade Auto fuses
- PRODUCT DETAIL
r fuse classification
Blade fuse
Blade fuses can be divided into:
Ultra small blade fuse, small automobile fuse, medium automobile fuse, large automobile fuse.
Rated currents range from 1-40 amps (A) to 30-120 amps (A) and rated voltages are 32 volts (V).
Fork bolt fuse
Fork-type fuses can be divided into: small fork-type fuses, large fork-type fuses.
Rated currents are 30-150 amps (A) to 40-800 amps (A), and rated voltages are 32/125 volts (V).
Automotive glass tube fuses can be divided into: 6.35 × 30mm glass tube fuses, 6.35 × 31.75mm glass tube fuses, and 10 × 38mm glass tube fuses.
Rated currents range from 0.5-20 amps (A) to 10 × 38mm 20-80 amps (A) and rated voltages are 32 volts (V).
Inspection and replacement
During the use of the car, if any electrical equipment does not work, it may be caused by a blown fuse and needs to be replaced in time.
The method is:
1. Turn off the ignition switch and open the fuse box cover.
2. Replace the fuse.
Precautions:
(1) The fuse should be replaced according to the rated current value indicated on the fuse box cover. Do not use a fuse with a higher rated current.
(2) If the new fuse blows again immediately, the circuit system may be faulty and should be repaired as soon as possible.
(3) Without a spare fuse. In an emergency, you can replace the fuse on other equipment that has no impact on driving and safety.
(4) If a fuse with the same current load cannot be found, a lower current rating than the original fuse can be used instead.
Continental Fuse Series (GBC) (FIG) Long 25MM width 5.8MM cylindrical fuse 5A-30A
Rated voltage: less than 32V DC
Material: 1, plastic; 2, zinc alloy
Dimension and current shows:

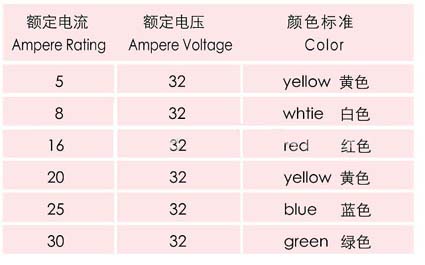

An ammeter display:
