Hair dryer temperature control switch works: When the temperature exceeds the set temperature. Contact circuit disconnect, The current forms a loop through the PTC element, And quickly raised to the rated reset temperature, The circuit remains off state, When the main power is turned off, When the temperature drops to a predetermined reset temperature. Double gold pieces quickly restored, Make the contact closed.
Technical Specifications:
Rated voltage / current: AC250V / 10A AC125V / 15A
  Operating temperature: 40 ~ 150 ℃ (special requirements can be resolved through consultation) Action deviation: ± 5 ℃
Contact life: ≤10, 000 times (resistance load) Contact resistance: ≤ 50mΩ
  Dimensions: 32. 5 × 7 × 4. 8mm Mounting hole center distance: 26. 5mm
Features:
1,  the temperature changes can make a rapid response, And with automatic reset function
2,  bimetallic no current through, To avoid the impact of self-heating effect.

Reset temperature	Rated voltage	Rated current
TH.Th.TC(℃)	(V)	(A)
Operating temperature 30--45±8℃	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10
	250	5	10


Instructions for use:
1, widely used in hair dryer, heaters, lamps and stew pot.
2, thermal protection in the installation and use of the process, Never touch the shrapnel and the temperature sensitive part, Otherwise it will lead to protector temperature error, Poor contact and no work.

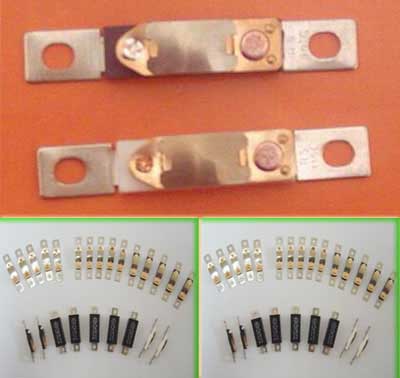

 AMT hair dryer temperature control switch product map
