Overcurrent and short-circuit protector for baby carriage battery
- PRODUCT DETAIL
|
Circuit breaker Specifications |
|
| The overcurrent protector is a bimetal structure. When the electric car's circuit is overloaded, a fast power-off protection function can be implemented. | |
| Rating: |
5-30A, 14-28Vdc |
| Operating Tempeature rating: | -40℉(-40℃) to 185℉(85℃) |
| Stortage Temperature rating: | -40℉(-40℃) to 260℉(125℃) |
| Materials: | UL-Rate 94V-0 thermoplastic body; Tin-plated cooper alloy terminals. |
| Marking: | Color-code to amperage available; aluminum cover is plain silver |
| Termination: |
5.1 mm wide blades compatible with ATC type fuse block; 6.3 mm quick connector compatible with .25”tab |
| Compliance: |
SAE J553 (all series); SAE J1171 Ignition protection (only for platic cover) VT11 (T1 cross to ACB/CCB) VT11-43 (T1) cross to UCB VT21 (T2) cross to CBB/FCB VT32 (T3) cross to CB227 |

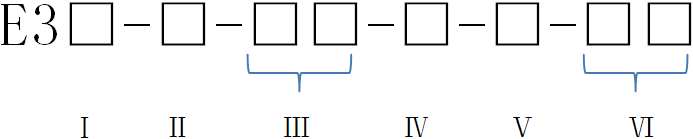

| Model Code: |
 |
| Ⅰ Type |
1: Type 1: auto reset 2: Type 2: modified reset 3: Type 3: manual reset |
| Body |
1: Aluminum cover 2: Plastic (PBT) cover |
| Ⅲ Rating |
5-30A 05: 5A; 10: 10A 15:15A; 20:20A 25:25A; 30:30A |
| Ⅳ Voltage |
1: 125Vac 2: 250Vac 4: 14Vdc (T1, plastic cover) 8: 28Vdc (T1/T2, aluminum cover; T3, plastic cover) 6: 6Vdc |
| Ⅴ Terminal |
2: QC, 6.3x9.1mm 3: 3 section breakable, 5.1x18.5mm 4: 280 type ATC fuse block, 5.1x12.5mm 5: QC, 6.3x9.1 mm with 4 mm dia. hole |
| Ⅵ | Special Request |
|

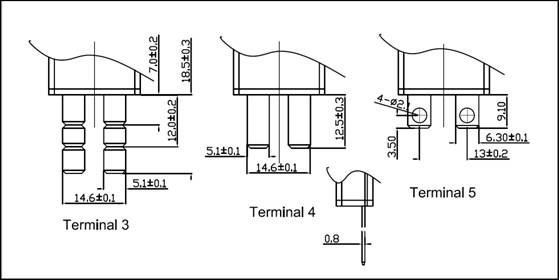

Dimensional Outline Drawing |
