LF 392 Series Small Current fuses

Product Item: LF 392 Series Small Current fuses
Category: Current fuse

Fuse shape
1. Filiform. Earlier original types of fuses were directly screw-locked and used for old switches and sockets of various sizes.
2. Flaky (naked). Chip fuses are more convenient to use than older wire types.
3. Glass tube. There are several different sizes, common in electronics.
6.3 x 32 mm (diameter x length)
5 x 20 mm
4. Ceramic tube. There are several different shapes and sizes to prevent glass from bursting.
5, plastic sheet with metal flake pin: Automotive fuse.
6. Surface Mount Device (SMD) type.
7. Cylinder-shaped, plug-in type: directly soldered to the circuit board, used in the product.

  • PRODUCT DETAIL
Fuse shape
1. Filiform. Earlier original types of fuses were directly screw-locked and used for old switches and sockets of various sizes.
2. Flaky (naked). Chip fuses are more convenient to use than older wire types.
3. Glass tube. There are several different sizes, common in electronics.
6.3 x 32 mm (diameter x length)
5 x 20 mm
4. Ceramic tube. There are several different shapes and sizes to prevent glass from bursting.
5, plastic sheet with metal flake pin: Automotive fuse.
6. Surface Mount Device (SMD) type.
7. Cylinder-shaped, plug-in type: directly soldered to the circuit board, used in the product.

Fuse sign
Most fuses are marked on the body or with end caps and markings indicating their rating. But "chip type" fuses have little or no marking, making identification very difficult.
Fuses may exhibit similar and significantly different characteristics, identifying their markings. Fuse marking usually conveys the following information:
Ampere fuse rating
Voltage level fuse
Time-current characteristics, ie speed fuse
Approved by national and international standards bodies
Manufacturer / Product Number / Series
Fusing capacity



Intentions to develop, to use technology to benefit society
Breaking Capacity  Material Operating Temperature  Soldering conditions
VDE:100 amperes at 250V/300V AC(250mA-6.3A)
UL:100 amperes at 125V/250V/300V/350V AC (250mA-6.3A)
Fuse body –Plastic
Element--Alloy
Pigtail--tin plated copper
-40℃~+125℃ Wave solder:260℃,≤5S
Hand solder: 360℃,≤1S


Functional  Characteristics
Testing current  Blow Time
Min Max
150% 1 hour
210% 1s 120s
275% 400ms 10s
400% 150ms 3ms
1000% 20ms  150ms

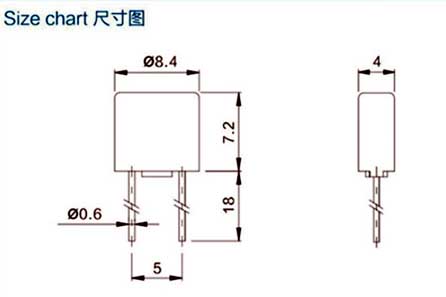

fuse electronic
Approvals (○ Pending  ● Approvals )
Current Rating  Voltage Rating  Norminal Melting I2T(A2sec) Approvals
VDE CQC UL CUL PSE KC
250mA 250V 0.28
300mA 250V 0.30
315mA 250V 0.32
350mA 250V 0.32
400mA 250V 0.40
500mA 250V 0.47
600mA 250V 0.48
630mA 250V 0.50
750mA 250V 0.51
800mA 250V 1.6
1A 250V 4.5
1.25A 250V 4.8 ●  ●    ●
1.5A 250V 4.9
1.6A 250V 7.4
2A 250V 12.2
2.5A 250V 13.6
3A 250V 13.7
3.15A 250V 30.5
3.5A 250V 30.6
4A 250V 50.2
5A 250V 80   ●
6A 250V 80.5
6.3A 250V 127   ●
7A 250V 127.3       ●
8A 250V 204.5   ●
10A 250V 320   ●
12A 250V 320   ●
12.5A 250V 320   ●
15A 250V 320   ●
