China manufacturer adjustable thermostat
- PRODUCT DETAIL
Adjustable temperature switch
Adjustable thermostat of electric iron
Bulb and Capillary Temperature Switches
Line Voltage Thermostats
Electronic Temperature Control
Our adjustable thermostat are made in the China, 100% tested before leaving the factory and sold all over the globe. For more information about each adjustable temperature switch continue reading below, or click here to contact our technical support team.

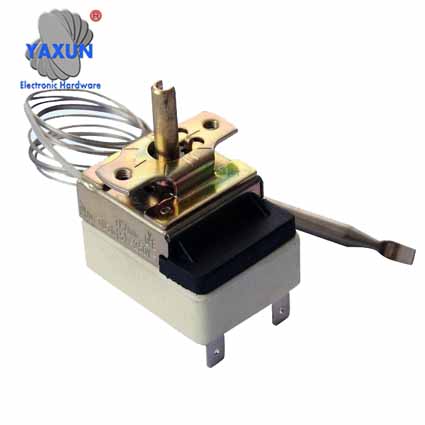

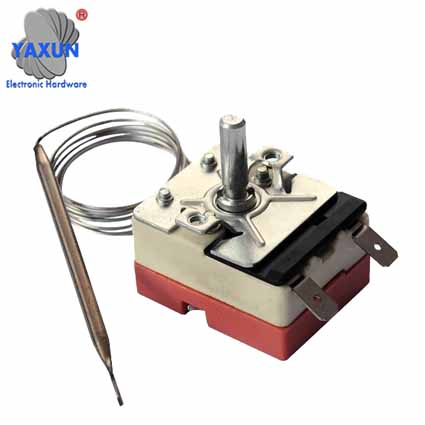

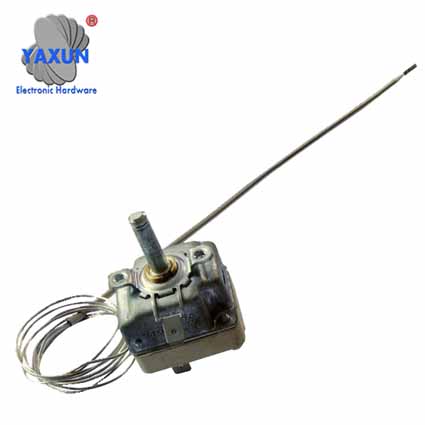

|Capillary Thermostat, Imit, TR2, Tarat, 75C||Termostato capilar 20 A / 250 V TS-120SR 32-248F||Electric Oven Thermostat, Adjustable Temperature Controller, 30-110℃ 16A 2 Pin|

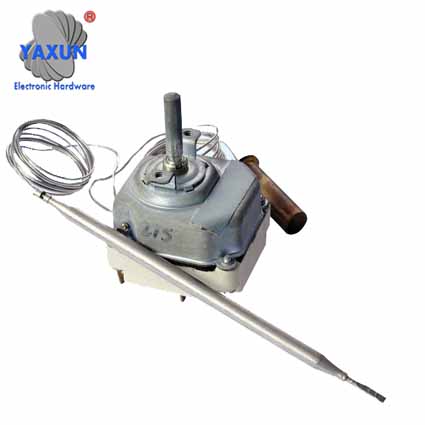

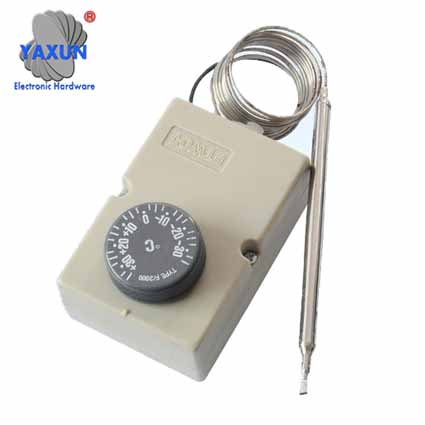

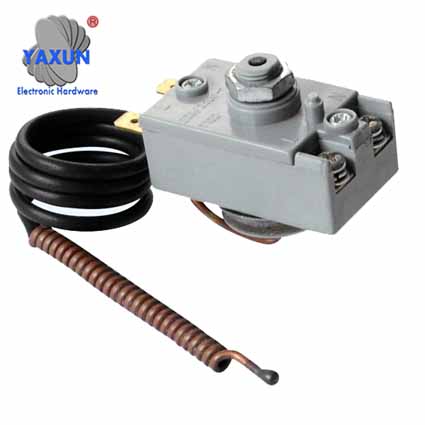

|THERMOSTAT Control Thermostat With Dial||White-Rodgers Gas Control Thermostat||EGO Adjustable Capillary Thermostat|
The temperature sensor consists of a sensor, capillary tube, membrane and filling medium. As the sensor heats up, the filling medium is heated and expands. The expansion of the filling medium results in an increase in pressure in the closed system. This pressure increase is converted into a path in the membrane.
The converted path or stroke actuates a snap switch and thus causes the contacts in the electrical circuit to open and close. The reference variable is specified via an adjusting spindle on the temperature controller. The temperature controllers work with very short travel distances. A distance of 0.01 mm corresponds to temperatures of approx. 3 K in the baking area.
With their stainless steel probe and flexible capillary tube, temperature regulators for heating devices are suitable for use in devices in which control elements and heaters are arranged in a wide variety of areas.

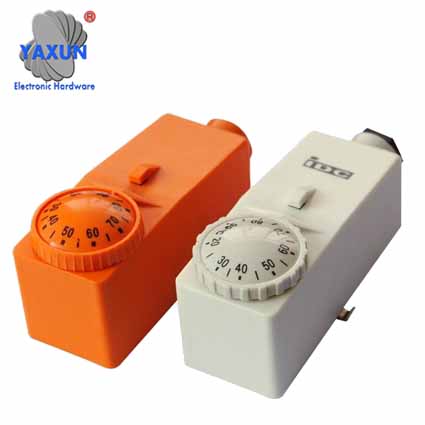

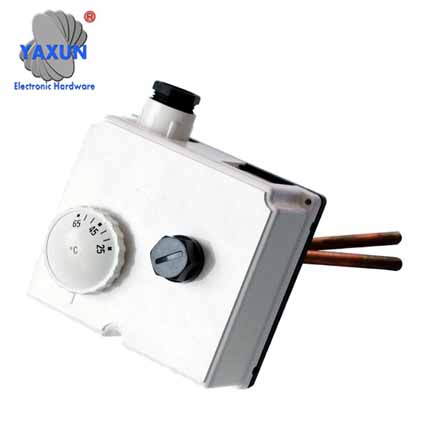

(VT.AC614.0) The adjustable thermostat with contact sensor is used to maintain the preset temperature of the heating medium in heating systems in buildings.
The relay with two positions of the thermostat allows to turn on and off all devices responsible for maintaining the preset temperature of the heating medium to control the pulse servo drives of three-way valves, circulation pumps, boilers.
This model has a built-in temperature sensor that allows for quick installation of the thermostat without additional fasteners. It is attached to a tube by means of a spring lock.
The main technical characteristics: supply voltage - 220 B (50 Hz); maximum switching current - 3 A; Temperature setting range - 17 to 90 ° C.

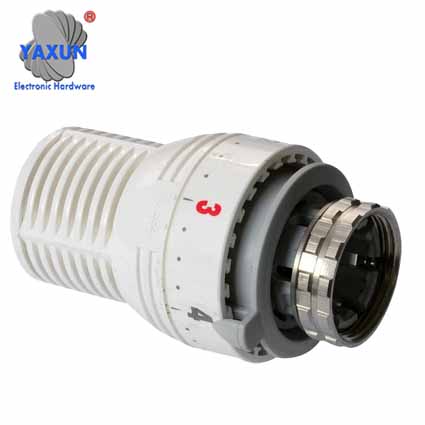

|High Capacity Thermostatic Actuator||Termostato capilar 20 A / 250 V TS-120SR 32-248F||ADJUSTABLE THERMOSTAT WITH A CONTACT SENSOR|
1- to 4-pole series
Opener / closer / changeover / selector limiter and TR / STB combination devices
A variety of sensor shapes and dimensions such as B. Round sensors in different lengths and diameters, spiral sensors, button sensors, and much more.
Different capillary tube lengths
Insulating hoses made of different materials
Various accessories (stuffing boxes, etc.)
Coupling with other control devices (switches, etc.) possible
In order to be able to supply exactly the right temperature controller for every device, we offer a very extensive selection of product variants with a wide variety of control ranges.
Due to the large variety of possible capillary tube lengths, our temperature regulators show the greatest flexibility during installation and can be optimally adapted to the conditions in each device. The sensor of the temperature controller picks up the temperature in the medium or on the heating. The housing can be placed the necessary distance in the most convenient location in the application.
Our capillary tube regulators are particularly suitable as temperature regulators for heating devices of all kinds. Most of the temperature regulators are equipped with a standard axis according to DIN 49284. It is attached to the device using two M4 screws (28 mm apart) or a central attachment
