Thin film CFL thermistor 10K 1% 3435
- PRODUCT DETAIL
Insulating film NTC thermistor for mobile phone batteries, unique production technology, more suitable for various temperature measurement and control in such small space occasions.

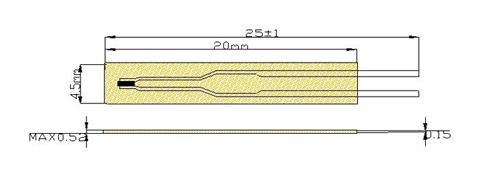

Main specifications: · Product size (total length, four models): 18mm, 25mm, 50mm, 75mm·
Features:
1). Insulated film package, fast thermal induction speed, high sensitivity
2) .Good stability and high reliability
3) .Good insulation
4) .High resistance accuracy
5). Use safety
6) .Small size, light weight, sturdy structure, easy for automatic installation
MF5B series lead in the same direction as the film package type
Note: The total length size can do: 18MM, 25MM, 50MM, 75MM (based on customer requirements)
II: Product Features:
1: MF5B series lead in the same direction as the film package type
2: insulating film packaging, thermal sensing speed sensitive record high
3: good stability, high reliability
4: Good insulation
5: High precision resistance
6: small size, light weight, rugged, easy to automate installation
MF 5B 103 F 3950
① ② ③ ④ ⑤
①MF ¬-- negative temperature coefficient (NTC) thermistor Code.
②5B-- film thermistor package.
③103 - thermistor nominal resistance, indicating that the nominal resistance of the resistance: 10 × 103 (Ω).
④F-- resistance value (accuracy) is: F = ± 1%, G = ± 2%, H = ± 3%, J = ± 5%
⑤3950-- thermal resistance index (material factor) B is: 395 × 10 (K)
MF5B series Caution:
1: Do not arbitrarily bending resistance wire rack to avoid chip and wire rack off and cause adverse resistance
2: Do not exceed the welding temperature 300 ℃, welding time is best not more than 0.5 seconds
3: When the heat-shrinkable tubing using a heat gun, air gun temperature should be controlled at about 120 ℃
4: Use a heated soldering iron, flat iron head in one hand and the resistance in one hand and touch welding wire were able to increase productivity and shorten the welding time
5: Special Note: Do not touch the chip mounted hand (ie, the resistance to the top)
Five: MF5B Series Model Specification
Main specifications: · Product size (total length, four models): 18mm, 25mm, 50mm, 75mm·
Features:
1). Insulated film package, fast thermal induction speed, high sensitivity
2) .Good stability and high reliability
3) .Good insulation
4) .High resistance accuracy
5). Use safety
6) .Small size, light weight, sturdy structure, easy for automatic installation
MF5B series lead in the same direction as the film package type
Note: The total length size can do: 18MM, 25MM, 50MM, 75MM (based on customer requirements)
II: Product Features:
1: MF5B series lead in the same direction as the film package type
2: insulating film packaging, thermal sensing speed sensitive record high
3: good stability, high reliability
4: Good insulation
5: High precision resistance
6: small size, light weight, rugged, easy to automate installation
MF 5B 103 F 3950
① ② ③ ④ ⑤
①MF ¬-- negative temperature coefficient (NTC) thermistor Code.
②5B-- film thermistor package.
③103 - thermistor nominal resistance, indicating that the nominal resistance of the resistance: 10 × 103 (Ω).
④F-- resistance value (accuracy) is: F = ± 1%, G = ± 2%, H = ± 3%, J = ± 5%
⑤3950-- thermal resistance index (material factor) B is: 395 × 10 (K)
MF5B series Caution:
1: Do not arbitrarily bending resistance wire rack to avoid chip and wire rack off and cause adverse resistance
2: Do not exceed the welding temperature 300 ℃, welding time is best not more than 0.5 seconds
3: When the heat-shrinkable tubing using a heat gun, air gun temperature should be controlled at about 120 ℃
4: Use a heated soldering iron, flat iron head in one hand and the resistance in one hand and touch welding wire were able to increase productivity and shorten the welding time
5: Special Note: Do not touch the chip mounted hand (ie, the resistance to the top)
Five: MF5B Series Model Specification
| Model | Rated resistance（R25） | B Value |
work Temperature |
Dissipation factor（mW/℃） |
Thermal time constant（S） |
|
|
Resistance （KΩ） |
Tolerance （± %） |
Nominal value （K） |
||||
| MF5B-503-3470 | 5 |
±1% ±2% ±3% ±5% |
3470 |
-40℃ ~ +125℃ |
≥0.7 Still air |
≤5 Still air |
| MF5B-103-3380 | 10 | 3380 | ||||
| MF5B-103-3435 | 10 | 3435 | ||||
| MF5B-103-3950 | 10 | 3950 | ||||
| MF5B-203-3950 | 20 | 3950 | ||||
| MF5B-503-3950 | 50 | 3950 | ||||
| MF5B-104-3950 | 100 | 3950 | ||||
| MF5B-204-3950 | 200 | 3950 | ||||
