MF51 103AT-4 NTC10K1%3435 50K 100K Enameled Wire Bead thermistor
- PRODUCT DETAIL

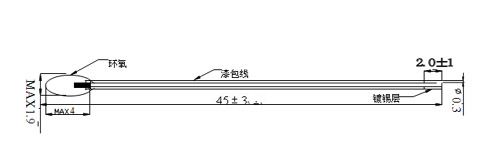

A: Appearance Dimensions
Note: 1: Head size: 1.0mm ~ 3.0mm (according to customer requirements)
2: Wire: φ0.18MM ~ 0.3MM (according to customer requirements)
3: Cable length: 10MM ~ 400MM (according to customer requirements)
II: Product Features:
1: MF51 series of products for the enameled with epoxy coating type
2: Wide range of resistance: 1KΩ ~ 200KΩ
3: Resistance and B value of high accuracy
4: good insulation, high reliability, small time constant
5: small, reflecting the speed
6: is stable for a long time, consistency
7: Operating temperature range: -40 ~ 110 ℃
4: Model Description
MF 51 103 F 3950
① ② ③ ④ ⑤
①MF ¬-- negative temperature coefficient (NTC) thermistor Code.
②51-- epoxy package NTC thermistor temperature sensor.
③103 - thermistor nominal resistance, indicating that the nominal resistance of the resistance: 10 × 103 (Ω).
Error ④F-- resistance value (accuracy) is: F = ± 1%, G = ± 2%, H = ± 3%, J = ± 5%
⑤3950-- thermal resistance index (material factor) B is: 395 × 10 (K)
Five: MF51 Series Model Specification
Note: according to customer requirements, provide different resistance, B value precision, customization.
NTC thermistor measurements must note the following:
• can not be measured in the air, the larger the difference in air temperature measurement inaccurate, resulting accuracy deviation.
• After using the high-precision measurements of the bath, measured after NTC into the bath, the bath temperature must be stable before measurement.
• Measure the voltage as low as possible in order to reduce measurement errors due to self-heating NTC.
• High temperature measurement, required temperature bath thermometer correction, check
Note: 1: Head size: 1.0mm ~ 3.0mm (according to customer requirements)
2: Wire: φ0.18MM ~ 0.3MM (according to customer requirements)
3: Cable length: 10MM ~ 400MM (according to customer requirements)
II: Product Features:
1: MF51 series of products for the enameled with epoxy coating type
2: Wide range of resistance: 1KΩ ~ 200KΩ
3: Resistance and B value of high accuracy
4: good insulation, high reliability, small time constant
5: small, reflecting the speed
6: is stable for a long time, consistency
7: Operating temperature range: -40 ~ 110 ℃
4: Model Description
MF 51 103 F 3950
① ② ③ ④ ⑤
①MF ¬-- negative temperature coefficient (NTC) thermistor Code.
②51-- epoxy package NTC thermistor temperature sensor.
③103 - thermistor nominal resistance, indicating that the nominal resistance of the resistance: 10 × 103 (Ω).
Error ④F-- resistance value (accuracy) is: F = ± 1%, G = ± 2%, H = ± 3%, J = ± 5%
⑤3950-- thermal resistance index (material factor) B is: 395 × 10 (K)
Five: MF51 Series Model Specification
Note: according to customer requirements, provide different resistance, B value precision, customization.
NTC thermistor measurements must note the following:
• can not be measured in the air, the larger the difference in air temperature measurement inaccurate, resulting accuracy deviation.
• After using the high-precision measurements of the bath, measured after NTC into the bath, the bath temperature must be stable before measurement.
• Measure the voltage as low as possible in order to reduce measurement errors due to self-heating NTC.
• High temperature measurement, required temperature bath thermometer correction, check
| Model | Rated resistance（R25） | B Value |
work Temperature |
Dissipation factor（mW/℃） |
Thermal time constant（S） |
|
|
Resistance （KΩ） |
Tolerance （± %） |
Nominal value （K） |
||||
| MF51-202-3435 | 2 |
±1% ±2% ±3% ±5% |
3435 |
-40℃ ~ +110℃ |
≥0.7 Still air |
≤6 Still air |
| MF51-502-3470 | 5 | 3470 | ||||
| MF51-682-3950 | 6.8 | 3950 | ||||
| MF51-103-3435 | 10 | 3435 | ||||
| MF51-103-3470 | 10 | 3470 | ||||
| MF51-103-3950 | 10 | 3950 | ||||
| MF51-203-3950 | 20 | 3950 | ||||
| MF51-503-3950 | 50 | 3950 | ||||
| MF51-683-3950 | 68 | 3950 | ||||
| MF51-873-3950 | 87 | 3950 | ||||
| MF51-104-3950 | 100 | 3950 | ||||
| MF51-104-3990 | 100 | 3990 | ||||
| MF51-204-3950 | 200 | 3950 | ||||
| MF51-204-4260 | 200 | 4260 | ||||
