SMD ntc thermistor
- PRODUCT DETAIL
Chip Device Overview:
Chip devices belong surface mount device (SMD: Surface Mount Devices) applied to the surface-mount (SMT: Surface Mount Technology) field is a high degree of concentration, an important device low-power circuits. Chip NTC is generally applied to the circuit with adaptive characteristics, temperature compensation and temperature control.
End electrode using Ag-Ni-Sn layer structure, with excellent weldability, resistance to soldering;
Single-layer structure technology, distribution capacity is low (less than 3PF), can be used in high-frequency fields;
Surface glass encapsulation technology (10μm), has good mechanical strength and moisture resistance, corrosion resistance.

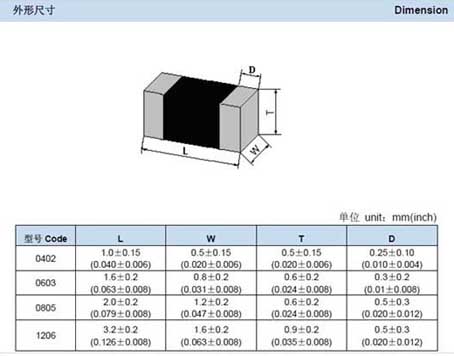

Dimensions: 0402 (1005), 0603 (1608), 0805 (2012);
R25 range: 1.0 × 102Ω-6.8 × 105Ω, the resistance value of the error levels are ± 1%, ± 3%, ± 5%, ± 10%;
B25 / 50 value range: 2500K-5000K, B values of the error levels are ± 1%, ± 2%, ± 3%, ± 5%.

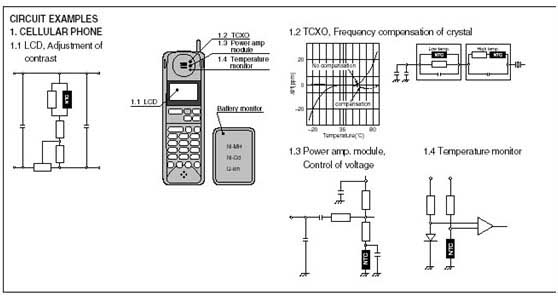

Temperature-compensated quartz crystal oscillator (TCXO) mobile communications using the radio frequency circuit, the critical temperature of the monitor, LCD panel.
LCD monitors temperature compensation circuit.
Rechargeable batteries and chargers temperature detection.

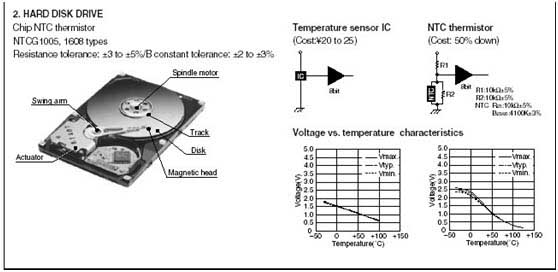

Computer microprocessor temperature probe.
IC and semiconductor devices overheat protection.
Printhead temperature compensation.
Player and all kinds of low-power drive circuit protection.
Wired communication PBX (2 to 4 per line).
DC / AC converter and HIC overheating protection.
Various circuits required temperature compensation.
