Bimetallic KSD series temperature control switch (such as: KSD9700, KSD301, KSD302, TB02, BW9700) structure and composition Accessories:Shell (KSD301 bakelite and ceramic), (KSD9700 with plastic and metal),Aluminum cover, terminals, contacts, rivets, static contact, moving reed, bimetallic sheet,A total of several accessories.

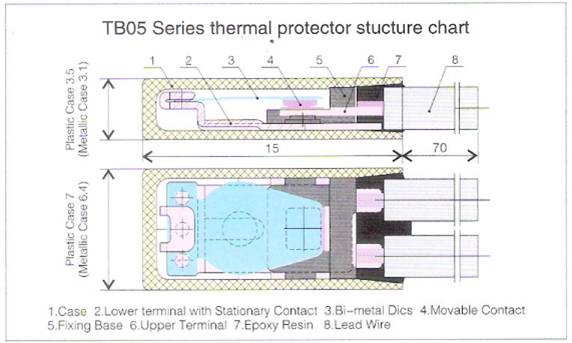

KSD9700 product structure

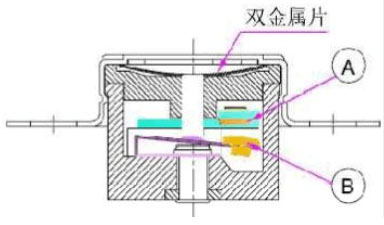

KSD301 product structure

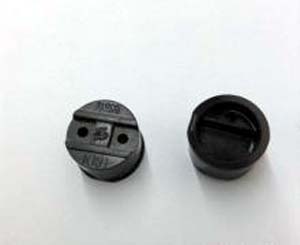

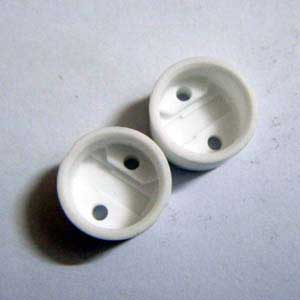

1, KSD301 shell (bakelite and ceramic)

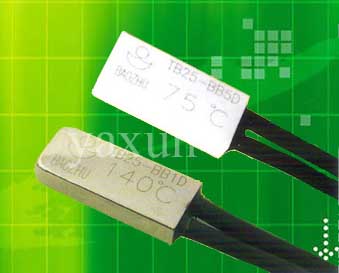

2, KSD9700 shell (metal and plastic)

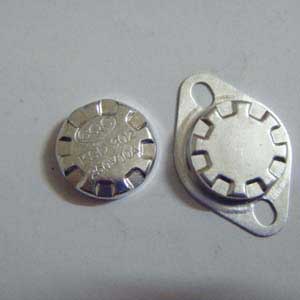

3.KSD301, KSD302 aluminum cover (thermal and protective effect)

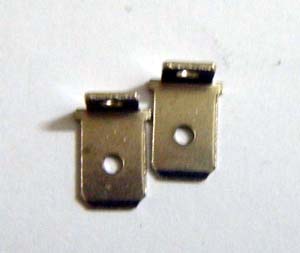

4.KSD301 terminal 6.3mm 4.8mm (connection conductive effect)

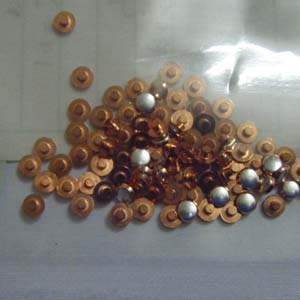

5, contacts (silver and copper contacts, silver point of the product price is expensive)

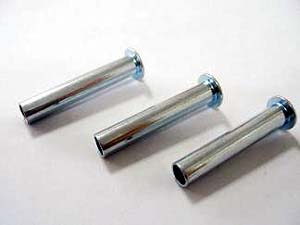

6, rivets (connection and fixed)

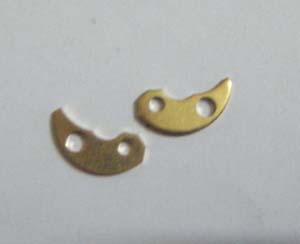

7, static contact (copper)

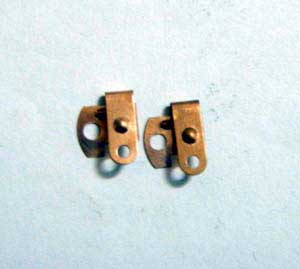

8, moving reed (copper)

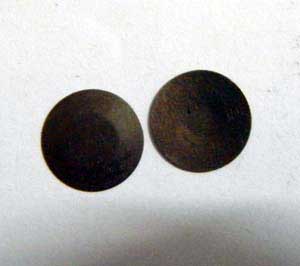

9, the temperature film (bimetal)


The above is KSD301, KSD9700 series of temperature control switch the basic components of accessories, By Yaxun temperature control switch experts, KSD9700 products or power lines, encapsulation of epoxy resin and so on. Specific product parameters, please contact us.
